65 Zirconia Silicate Beads Specifications :
| Price | Contact Us |
| Place of Origin | Shandong, China |
| Payment Terms | T/T, L/C, Western Union, etc. |
| Delivery Detail | 10-25 Working Days. |
| Keyword | Zirconia Beads |
65 Zirconia Silicate Beads Detail Introduction :

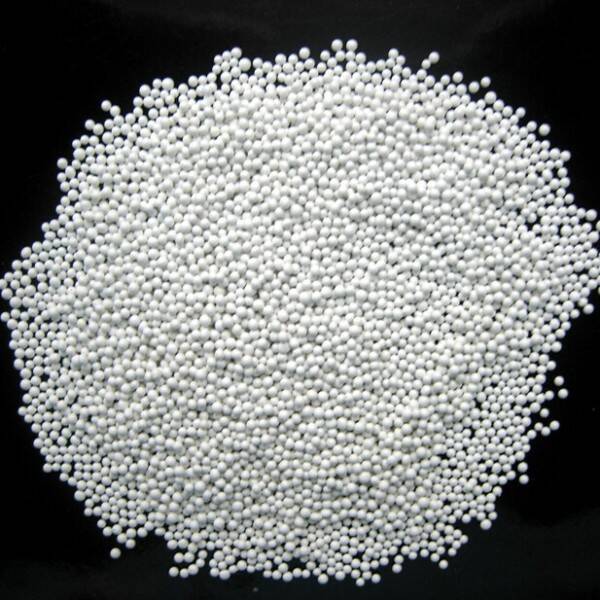

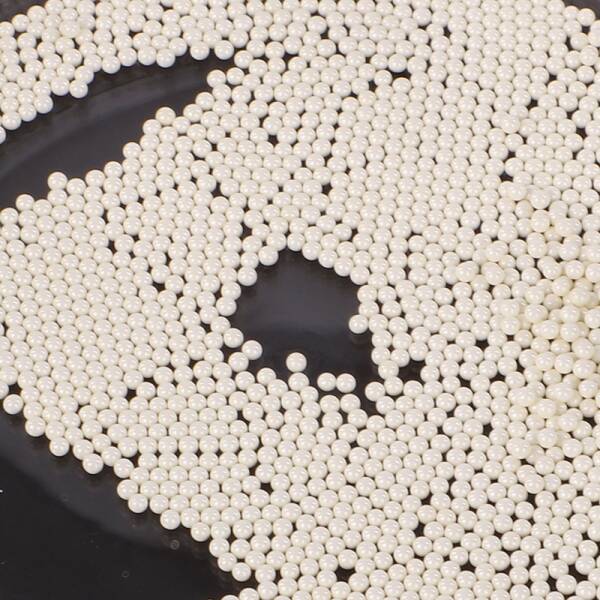

Ceramic Blasting & Peening Media 65 Zirconia Silicate Beads
Ceramic bead is a spherical blasting and peening media produced by the fusion of oxides at a very high temperature. Ceramic bead is extremely tough, high impact properties coupled with good hardness, ensuring consistent peening intensities and surface finishes.
Application
Removal of carbon deposits and other impurities from glass making and rubber tire moulds, without damaging the surface or critical edges
Deburring thin gaskets
Shot peening ferrous and non ferous items includidng aircraft engine blades, turbines etc. Internal and external thread peening
Cleaning, sanitizing and surface finishing of fabricated stainless steel items for food and pharmaceutical industries. Medical implant and instrument surface finishing
Ceramic beads can be used in Air Blast and Wet Blast system plus Turbine Shot Blast equipment.
Product Data Sheet:
Chemical Composition | ZrO2: 75~80% SiO2:7~12% Others: 7~12% |
Density | >5.4g/cm3 |
Bulk Density | ≥3.3g/cm3 |
Compressive Strength | >1.5KN(Φ 2mm) |
Vickers Hardness | >1050 |
Self Consumption(ppm/h) | <1.5 |
Roundness | ≥0.97(Xmin/Xmax) |
Color | White |
Available Size:
| ø 0.2-0.4mm | ø 0.4-0.6mm | ø 0.6-0.8mm | ø 0.8-1.0mm | ø 1.0-1.2mm |
| ø 1.2-1.4mm | ø 1.4-1.6mm | ø 1.5-2.0mm | ø 2.0-2.5mm | ø 2.5-3.0mm |
| ø 3.0-3.5mm | ø 4mm | ø 5mm | ø 8mm | ø 10mm |
Other size can be customized.
