Round Ceramic Blasting & Peening Media 65 Zirconia Silicate Beads For Shot Peening
We have our own in-house quality control system. Chemical component analysis, Hardness testing, Density Testing, Fatigue life testing all available. We are serious and strict for the quality control of our abrasives.
Also we have good cooperation with SGS Qingdao branch, more testing available if you need, such as Abrasive Conductivity Testing.
Round Ceramic Blasting & Peening Media 65 Zirconia Silicate Beads For Shot Peening Specifications :
| Price | Contact Us |
| Place of Origin | Shandong, China |
| Payment Terms | T/T, L/C, Western Union, etc. |
| Delivery Detail | 10-25 Working Days. |
| Keyword | Zirconia Beads |
Round Ceramic Blasting & Peening Media 65 Zirconia Silicate Beads For Shot Peening Detail Introduction :

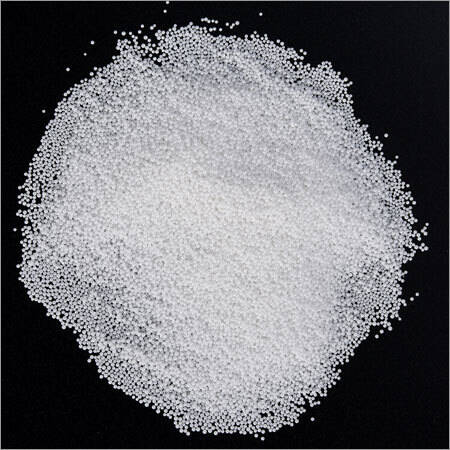

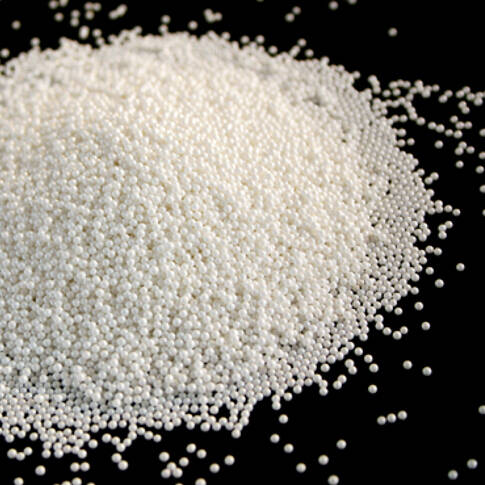

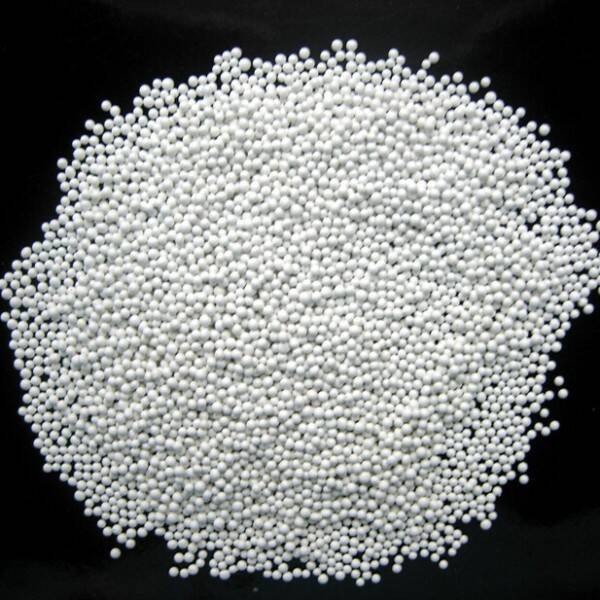

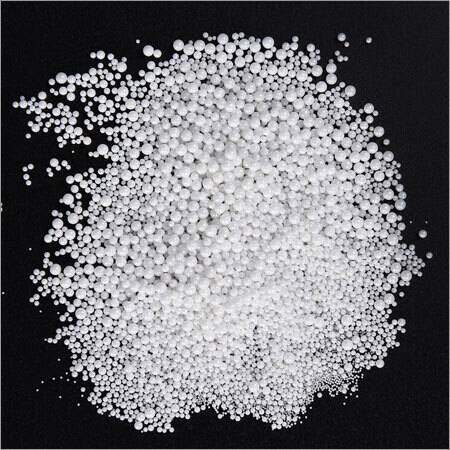

Ceramic Blasting & Peening Media 65 Zirconia Silicate Beads
Ceramic bead is a spherical blasting and peening media produced by the fusion of oxides at a very high temperature. Ceramic bead is extremely tough, high impact properties coupled with good hardness, ensuring consistent peening intensities and surface finishes.
Application
Removal of carbon deposits and other impurities from glass making and rubber tire moulds, without damaging the surface or critical edges
Deburring thin gaskets
Shot peening ferrous and non ferous items includidng aircraft engine blades, turbines etc. Internal and external thread peening
Cleaning, sanitizing and surface finishing of fabricated stainless steel items for food and pharmaceutical industries. Medical implant and instrument surface finishing
Ceramic beads can be used in Air Blast and Wet Blast system plus Turbine Shot Blast equipment.
Technical Specification
| Items | Specification |
| Composition wt% | 60-65% ZrO2 30% SiO2 |
| Bulk Density Kg/L | 2.6-2.7(Φ2mm) |
| Specific Density g/cm3 | 4.0-4.1 |
| Hardness Moh’s | >8.5 |
| Elastic modulus GPa | 200 |
| Thermal Conductivity W/m.K | 3 |
| Fracture Toughness MPam1-2 | 7 |
| Grain size µm | ≤0.5 |
| Thermal expansion Coefficient(20-400 °C) 10x10 -6 / °C(20-400) | 9.6 |
Available Size:
| ø 0.2-0.4mm | ø 0.4-0.6mm | ø 0.6-0.8mm | ø 0.8-1.0mm | ø 1.0-1.2mm |
| ø 1.2-1.4mm | ø 1.4-1.6mm | ø 1.5-2.0mm | ø 2.0-2.5mm | ø 2.5-3.0mm |
| ø 3.0-3.5mm | ø 4mm | ø 5mm | ø 8mm | ø 10mm |
Other size can be customized
