High Temperature Resistance, Wear Resistance Steel Grit - steel grit g25 High Carbon Steel Grit
We have our own in-house quality control system. Chemical component analysis, Hardness testing, Density Testing, Fatigue life testing all available. We are serious and strict for the quality control of our abrasives.
Also we have good cooperation with SGS Qingdao branch, more testing available if you need, such as Abrasive Conductivity Testing.
High Temperature Resistance, Wear Resistance Steel Grit - steel grit g25 High Carbon Steel Grit Specifications :
| Price | Contact Us |
| Place of Origin | Shandong, China |
| Payment Terms | T/T, L/C, Western Union, etc. |
| Delivery Detail | 10-25 Working Days. |
| Keyword | Steel Grit Abrasive |
High Temperature Resistance, Wear Resistance Steel Grit - steel grit g25 High Carbon Steel Grit Detail Introduction :

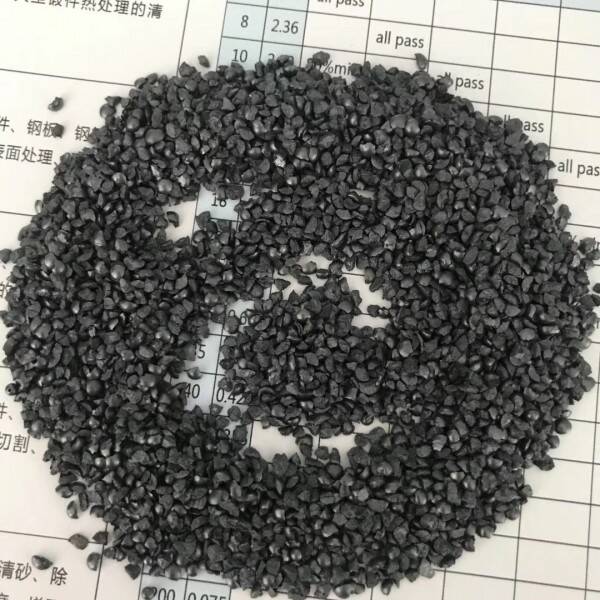

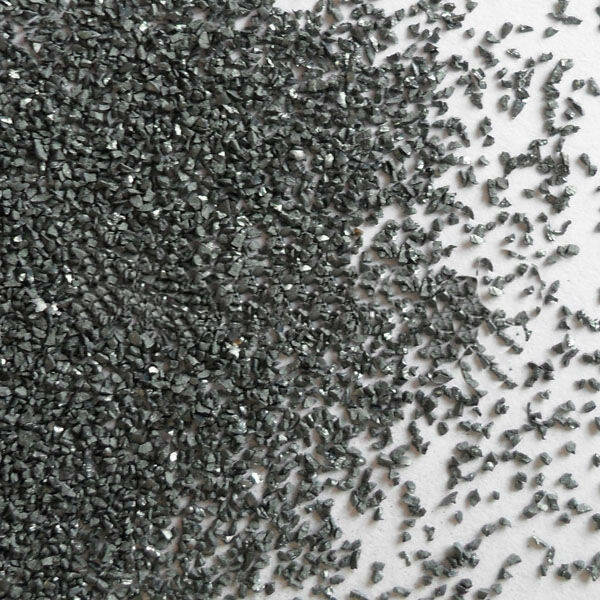

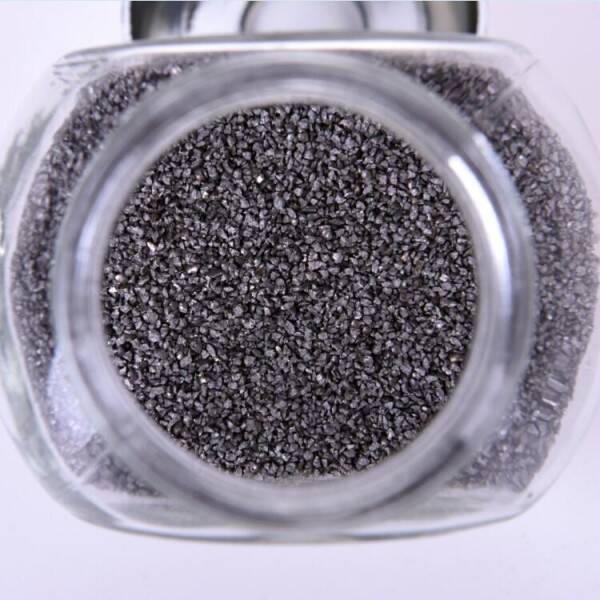

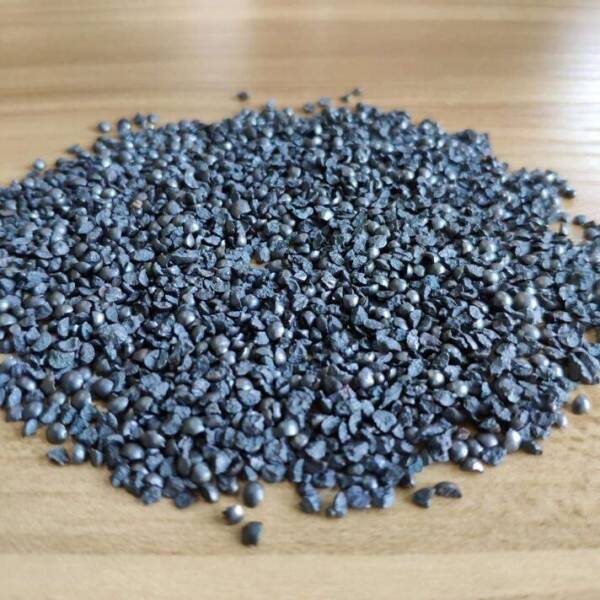

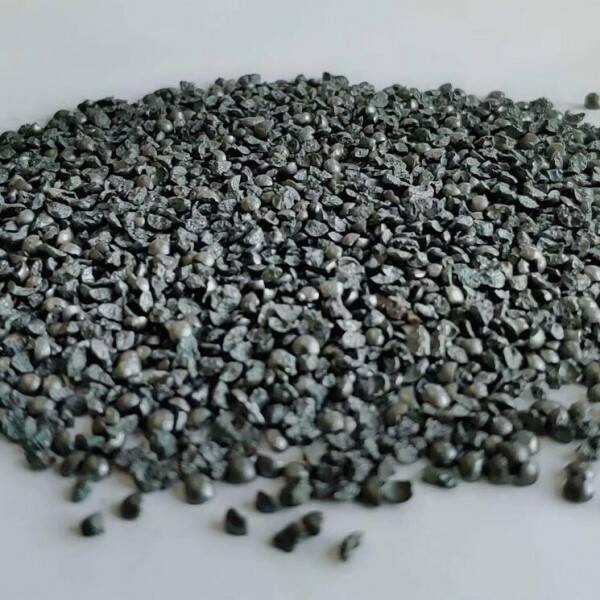

Steel Grit - High carbon steel grit
G10/G12/G14/G16/G18/G25/G40/G50/G80/G120
GH GL GP grade
Specification:
Product | STEEL GRIT STEEL SHOT | Type No. | STEEL GRIT GH/GL/GP10-120 STEEL SHOT S070-S1110 | |
Test Items | Specifications | |||
STEEL GRIT | STEEL SHOT | |||
Chemical Composition % | C | 0.85-1.20 | 0.85-1.20 | |
Mn | 0.40-1.20 | 0.40-1.20 | ||
Si | 0.40-1.20 | 0.40-1.20 | ||
S | ≤0.05 | ≤0.05 | ||
P | ≤0.05 | ≤0.05 | ||
Hardness ( HRC ) | 60-66(GH) 50-60(GL) 42-50(GP) | 40-50 | ||
Metallographic Structure | Even tempered martensite | Even tempered martensite | ||
