conditioned cut wire shot Specifications :
| Price | Contact Us |
| Place of Origin | Shandong, China |
| Payment Terms | T/T, L/C, Western Union, etc. |
| Delivery Detail | 10-25 Working Days. |
| Keyword | Cut Wire Shot |
conditioned cut wire shot Detail Introduction :
Product parameters

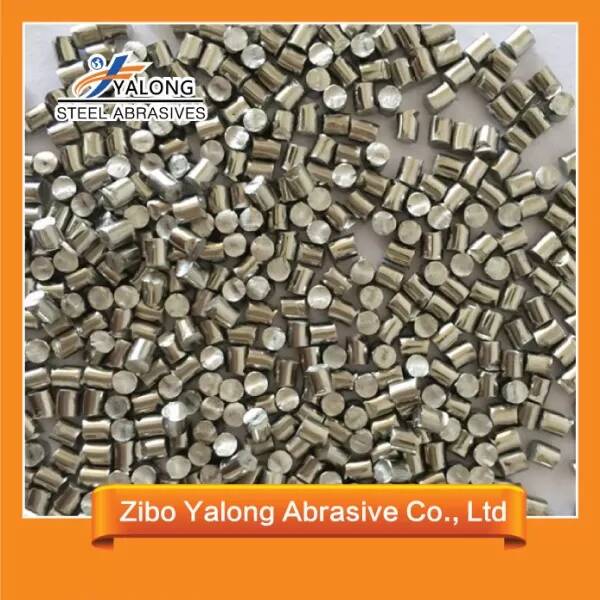

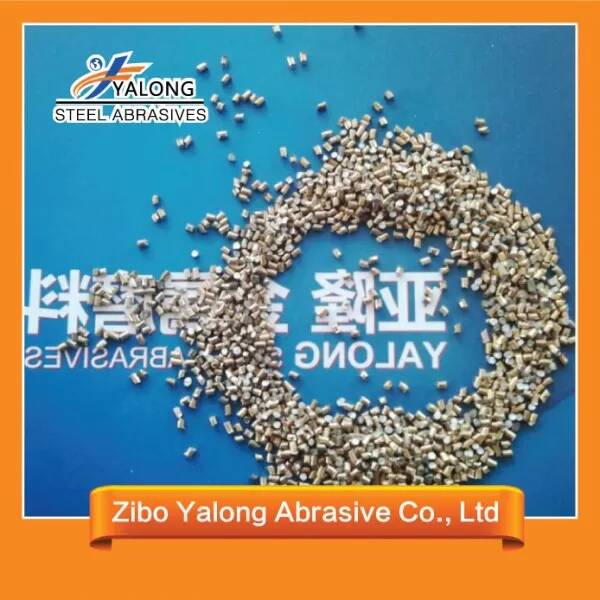

Produced by adopting the Drawing into wire, cutting, screen and other refined procedures. Appearance is bright, no rust, cylindrical shape (as cut).
Widely used for cleaning, deburring, surface improvement, shot blasting, shot peening of Aluminium, Non Ferrous Metals, Zinc Alloys, Stainless Steel precision etc.
Available Grades :
SUS 304
SUS 302
SUS 430
SUS 410 etc.
Hardness Range HRC : 30-40, 40-45, 45-50, 50-55
Available Sizes in mm : 0.3, 0.4, 0.5, 0.6, 0.8, 1.00, 1.2, 1.4, 1.5, 2.0, 2.5 mm
Different levels of conditioning.
CW - As Cut
G1 - Single Conditioned
G2 - Double conditioned

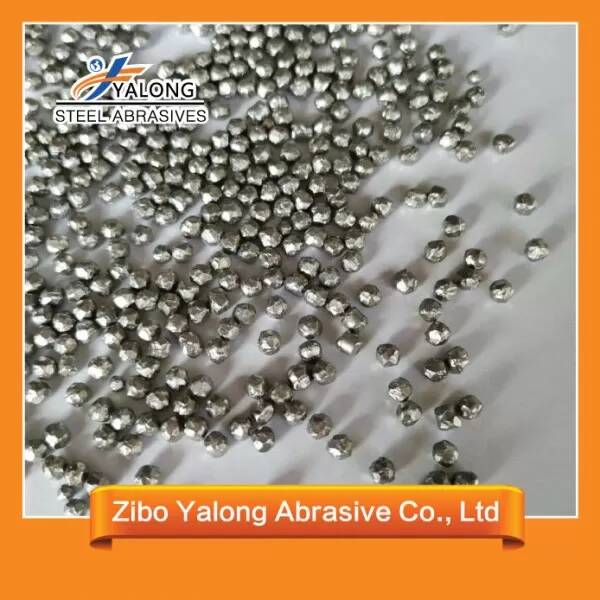

G3 - Spherically conditioned
Chemical composition:
| Product | Grade | Hardness | Composition (%) | Density | ||||
| C | Si | Mn | Ni | Cr | ||||
| stainless steel cut wire shot | (SUS304)Austenite | 300-600HV | 0.08%max | 1.0%max | 2.0%max | 8.0-10.0% | 17-19 | 7.8g/cm³ |
| stainless steel cut wire shot | (SUS302)Austenite | 0.08%max | 1.0%max | 2.0%max | 4.0-6.0% | 16-18 | ||
| stainless steel cut wire shot | (SUS430) Ferrite | 0.12%max | 0.75%max | 1.2% | / | 16-18 | ||
| stainless steel cut wire shot | (SUS410) Martensite | 0.10% | 1.0%max | 1.2% | / | 11-13 | ||
Abrasive products | Advantage |
Steel cut wire shot | High quality control,best price offer |
Steel shot | Sufficient stock, Delivery timely 10-25 days |
Steel grit | GE Stabilized supplier |
Stainless steel shot | SAE standard, ISO9001 certificate |
Cu /Al / Zn / shot etc | Flexibility &Professional customer service× 24h |
